PHXII03:CURRENT ELECTRICITY

357522 A carbon resistor of \((47 \pm 4.7)k\Omega \) is to be marked with rings of different colours for its identification.The colour code sequence will be

1 Yellow-Green-Violet-Gold
2 Green-Orange-Violet- Gold
3 Yellow-Violet-Orange-Silver
4 Violet-Yellow-Orange-Silver
NEET - 2018
PHXII03:CURRENT ELECTRICITY

357523 The colour coded resistance of carbon resistance is (Initial three bands are red and fourth band is silver)

1 \(222 \Omega \pm 10 \%\)
2 \(2200 \Omega \pm 10 \%\)
3 \(333 \Omega \pm 5 \%\)
4 \(33000 \Omega \pm 10 \%\)
PHXII03:CURRENT ELECTRICITY

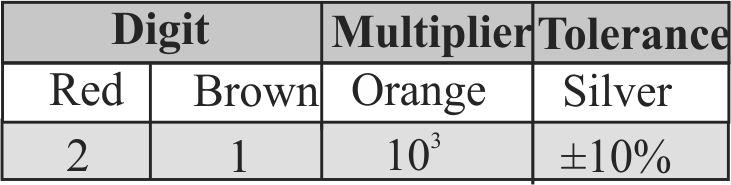

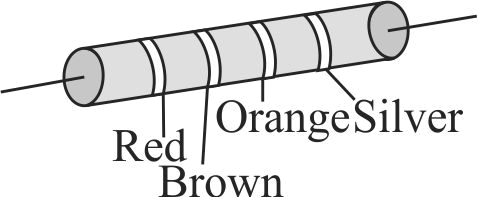

357524 The colour sequency in a carbon resistor is red, brown,orange and silver. The resistance of the resistor is
supporting img

1 \(21 \times {10^3} \pm 10\% \)
2 \(12 \times {10^3} \pm 5\% \)
3 \(23 \times {10^1} \pm 10\% \)
4 \(21 \times {10^3} \pm 5\% \)
PHXII03:CURRENT ELECTRICITY

357525 The four bands of a colour coded resistor are of the colour grey, red, gold and gold. The value of the resistance of the resistor is

1 \(8.2 \Omega \pm 5 \%\)
2 \(82 \Omega \pm 5 \%\)
3 \(5.2 \Omega \pm 5 \%\)
4 \(82 \Omega \pm 10 \%\)
KECT - 2023
