357518
Resistance of a carbon resistor determined from colour codes is \((22000 \pm 5 \%) \Omega\). The colour of third band must be:
1 Green
2 Orange
3 Yellow
4 Red
Explanation:

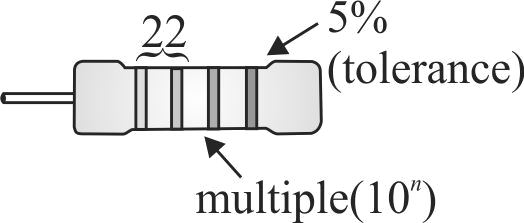

\(R=\left[22 \times 10^{3} \pm 5 \%\right] \Omega\) For \(n = 0\), that band is black. For \(n = 1\), that band is brown. For \(n = 2\), that band is red. For \(n = 3\), that band is orange. \( \Rightarrow {10^3}\) indicates ‘orange’.
NEET - 2023
PHXII03:CURRENT ELECTRICITY
357519

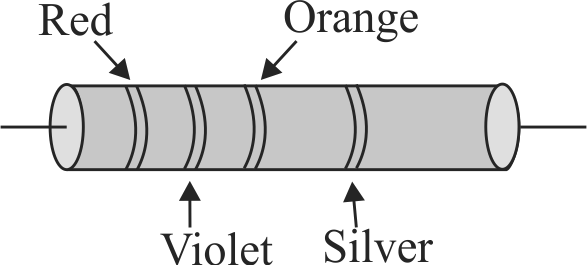

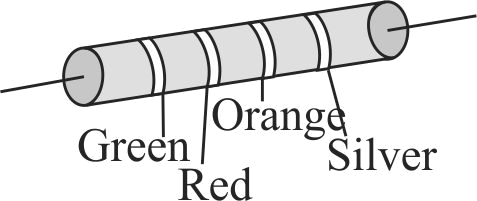

A resistance is shown in the figure. Its value and tolerance are given respectively by
