Young’s Double Slit Experiment
PHXII10:WAVE OPTICS

368119 Two monochromatic coherent point sources S1andS2 are separated by a distance L . Each source emits light of wavelength λ, where L>>λ. The lines S1S2 when extended meets a screen perpendicular to it at a point A.

1 The interference fringes on the screen are straight lines perpendicular to the line S1S2A
2 The interference fringes on the screen are circular in shape
3 The point A is always bright for any separation L
4 The point is bright if L=nλ/2
PHXII10:WAVE OPTICS

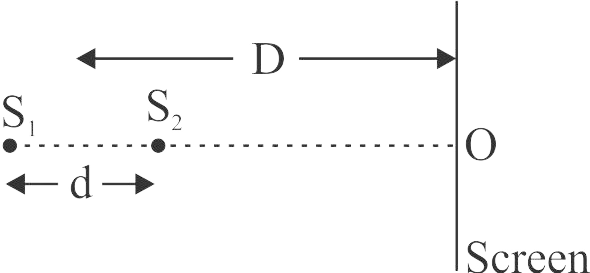

368120 Two monochromatic and coherent point sources of light of wavelength λ are placed as shown in the figure below. The initial phase difference between the sources is zero. Select the correct statement (D>>d). If d=4.8λ then total number of minimas on the screen are equal to
supporting img

1 6
2 4
3 5
4 10
PHXII10:WAVE OPTICS

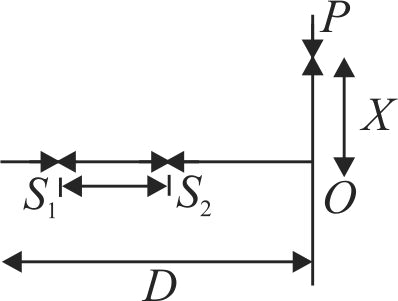

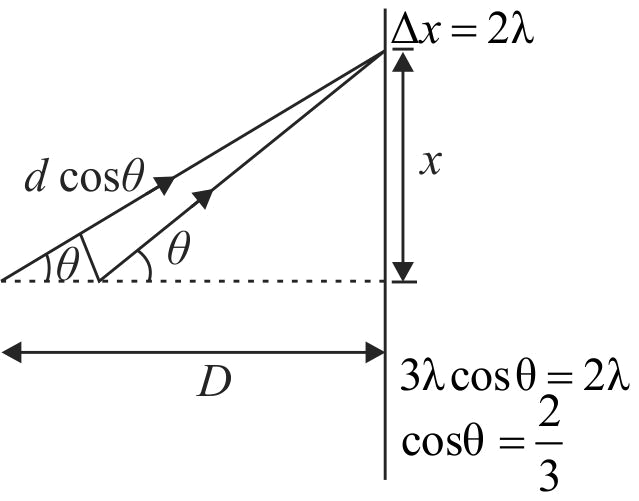

368121 Two coherent narrow slits emitting light of wavelength λ in the same phase are placed parallel to each other at a small seperation of 3λ. The light is collected on a screen S which is placed at a distance D(>>λ) from the slits. The smallest distance x such that the P is a maxima.
supporting img

1 3D
2 8D
3 5D
4 5D2
PHXII10:WAVE OPTICS

368122 Assertion :
Two point coherent sources of light S1, and S2 are placed on a line as shown. P and Q are two points on that line. If at point P maximum intensity is observed then maximum intensity should also be observed at Q.
supporting img
Reason :
In the figure of assertion if the distance |S1PS2P| is equal to distance |S2QS1Q| then maximum intensity is observed at both P and Q.

1 Both Assertion and Reason are correct and Reason is the correct explanation of the Assertion.
2 Both Assertion and Reason are correct but Reason is not the correct explanation of the Assertion.
3 Assertion is correct but Reason is incorrect.
4 Assertion is incorrect but reason is correct.
PHXII10:WAVE OPTICS

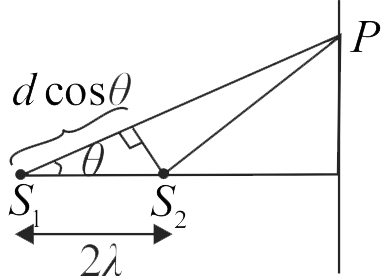

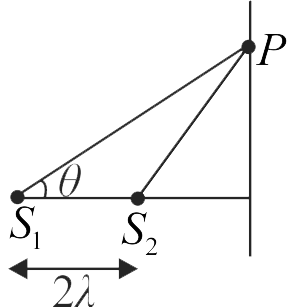

368123 In Young's double slit experiment, the slits are horizontal. The intensity at a point P (as shown in figure) is 34Im, where Im is the maximum intensity. If the value of θ is found to be cos1(NM), then the value of N+M is
supporting img

1 18
2 10
3 15
4 13
PHXII10:WAVE OPTICS
