363273

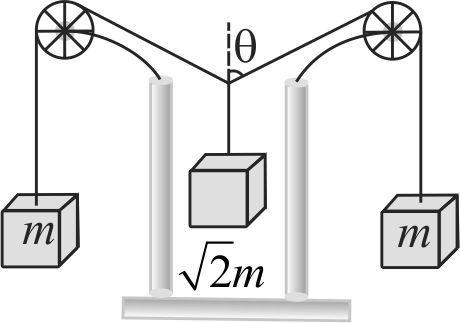

The pulleys and strings shown in the figure are smooth and of negligible mass. For the system to remain in equilibrium, the angle \(\theta \) should be
1 \(0^\circ \)
2 \(30^\circ \)
3 \(45^\circ \)
4 \(60^\circ \)
Explanation:

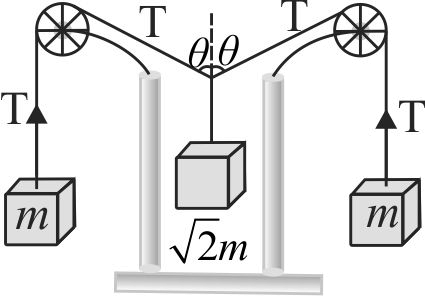

Let \(T\) be the tension in the string. From the figure for the equilibrium of the system \(2T\cos \theta = \sqrt 2 mg\; \Rightarrow \,\cos \theta = \frac{1}{{\sqrt 2 }} \Rightarrow \theta = 45^\circ \)
PHXI05:LAWS OF MOTION
363274
Three concurrent co-planar forces 1 \(N\), 2 \(N\) and 3 \(N\) acting along different directions on a body
1 Can keep the body in equilibrium If 2 \(N\) and 3 \(N\) act at right angle
2 Can keep the body in equilibrium if \(1\,N\) and 3 \(N\) act at right angle
3 Can keep the body in equilibrium if \(1\,N\) and 3 \(N\) act at an acute angle
4 None of these
Explanation:
If \(1\,N\) and \(2\,N\) act in the same direction and \(3\,N\) acts in opposite direction, then equilibrium is possible. So correct option is (4).
PHXI05:LAWS OF MOTION
363275

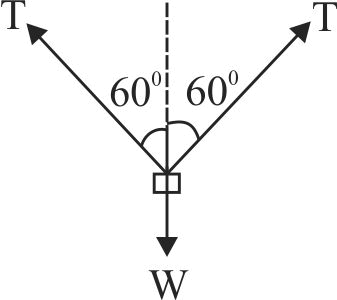

An object is resting at the bottom of two strings which are inclined at an angle of \(120^\circ \) with each other. Each string can with stand a tension of 20 \(N\) . The maximum weight of the object that can be sustained without breaking the strings is
