PHXII03:CURRENT ELECTRICITY

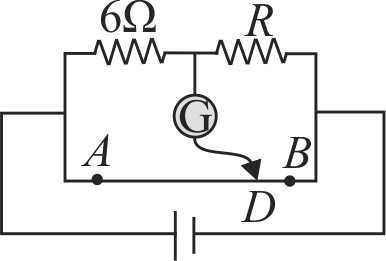

357286 The meter-bridge wire \(A B\) shown in figure is \(50\,cm\) long. When \(AD = 30\;cm\), no deflection occurs in the galvanometer. Find \(R\).
supporting img

1 \(1\,\Omega \)
2 \(2\,\Omega \)
3 \(3\,\Omega \)
4 \(4\,\Omega \)
PHXII03:CURRENT ELECTRICITY

357287 In the circuit shown, a metre bridge is in its balanced state. The meter bridge wire has a resistance 0.1 \(ohm\)/\(cm\). The value of unknown resistance \(X\) and the current drawn from the battery of negligible resistance is
supporting img

1 \(12\,\Omega ,\;0.5\,amp\)
2 \(6\,\Omega ,\;5\,amp\)
3 \(10\,\Omega ,\;0.1\,amp\)
4 \(4\,\Omega ,\;1.0\,amp\)
PHXII03:CURRENT ELECTRICITY

357288 With resistance \(P\) and \(Q\) in the left and the right gap respectively of a metre bridge, the null point divides the wire in the ratio \(3: 4\). When \(P\) and \(Q\) are increased by \(20\,\Omega \) each, the null point divides the wire in the ratio \(5: 6\). The values of \(P\) and \(Q\) are

1 \(30\, \Omega, 40\, \Omega\)
2 \(20\, \Omega, 40\, \Omega\)
3 \(30\, \Omega, 80\, \Omega\)
4 \(20\, \Omega, 20\, \Omega\)
PHXII03:CURRENT ELECTRICITY

357289 In the given arrangement of experiment on metre bridge, if \(AD\) corresponding to null deflection of the galvanometer is \(X\), what would be its value if the radius of the wire \(AB\) is doubled ?
supporting img

1 \(X\)
2 \(\frac{X}{4}\)
3 \(4X\)
4 \(2X\)
