Young’s Double Slit Experiment
« Previous Topic: Wave Nature of Light Last Topic in »
PHXII10:WAVE OPTICS

368042 In Young’s double slit experiment, we get 10 fringes in the field of view of monochromatic light of wavelength \(4000{\rm{ }}\mathop A\limits^ \circ \), then the number of fringes obtained in the same field of view for wavelength \(5000\mathop {{\rm{ }}A}\limits^ \circ \) is

1 8
2 10
3 40
4 50
PHXII10:WAVE OPTICS

368043 Statement A :
In Young’s double slit experiment interference pattern disappear when one of the slits is closed.
Statement B :
Interference occurs due to superimposition of light waves from two coherent sources.

1 Statement A is correct but Statement B is incorrect.
2 Statement A is incorrect but Statement B is correct.
3 Both Statements are correct.
4 Both Statements are incorrect.
PHXII10:WAVE OPTICS

368044 In young’s double slit experiment fifth dark fringe is formed opposite to one of the slit. If \(D\) is the distance between the slits and the screen and \(d\) is the separation between the slits, then the wavelength of light used is

1 \(\frac{{{d^2}}}{{5D}}\)
2 \(\frac{{{d^2}}}{{9D}}\)
3 \(\frac{{{d^2}}}{{6D}}\)
4 \(\frac{{{d^2}}}{{15D}}\)
PHXII10:WAVE OPTICS

368045 The width of fringe is \(2\,mm\) on the screen in a double slits experiment for the light of wavelength of \(400\,nm\). The width of the fringe for the light of wavelength \(600\,nm\) will be

1 \(4\,mm\)
2 \(2\,mm\)
3 \(3\,mm\)
4 \(1.33\,mm\)
JEE - 2023
PHXII10:WAVE OPTICS

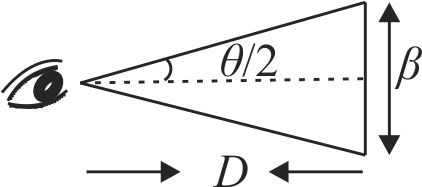

368046 In Young's double slit experiment, the distance between slits and the screen is \(1.0\,m\) and monochromatic light of \(600\,nm\) is being used. A person standing near the slits is looking at the fringe pattern. When the separation between the slits is varied, the interference pattern disappears for a particular distance \(d_{0}\) between the slits. If the angular resolution of the eye is \(\dfrac{1^{\circ}}{60}\) the value of \({d_o}\) is close to

1 \(2\;\,mm\)
2 \(1\,mm\)
3 \(3\,\;mm\)
4 \(4\,mm\)
JEE - 2016
