363151

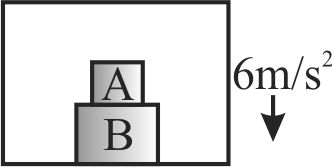

The elevator shown in fig. is descending with an acceleration of \(6\,m/{s^2}\). The mass of block \(A\) is 1\(kg\). The force between \(A\) and \(B\) is :
1 \(4\,N\)
2 \(2\,N\)
3 \(1\,N\)
4 \({\mathop{\rm zero}\nolimits} \)
Explanation:
Let \(N\) be the normal force between \(A\) and \(B\). The Newton's \({2^{nd}}\) law w.r.to lift frame on block \(A\) is \(N - mg + ma = m\left( 0 \right)\) \( \Rightarrow N = m\left( {g - a} \right)\) \( = 1\left( {10 - 6} \right) = 4N\)
PHXI05:LAWS OF MOTION
363152

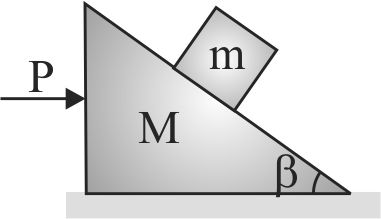

Two wooden blocks are moving on a smooth horizontal surface such that the mass \(m\) remains stationary with respect to block of mass \(M\) as shown in the figure. The magnitude of force \(P\) is:
1 \((M + m)g\tan \beta \)
2 \(g\tan \beta \)
3 \(mg\cos \beta \)
4 \((M + m)g\,{\rm{coses}}\,\beta \)
Explanation:
The acceleration with which the system should move so that the block does not move w.r. to the wedge is \(g\tan \beta \). The required force is \(F = (M + m)g\tan \beta \)
PHXI05:LAWS OF MOTION
363153
A pseudo force
1 Is a pseudo vector
2 Acts on the observer
3 Has no reaction force
4 \( - m\overrightarrow a \), where \(a = \) acceleration of the object of mass \(m\).
Explanation:
Conceptual Question
PHXI05:LAWS OF MOTION
363154
A person is standing in an elevator. In which situation he finds his weight less than actual weight?
1 The elevator moves upward with constant acceleration
2 The elevator moves downward with constant acceleration
3 The elevator moves upward with uniform velocity
4 The elevator moves downward with uniform velocity
Explanation:
When the elevator moves downward with an acceleration then pseudo force acts upward. Which will reduce the weight of the person.
