362946 The resistance of an ammeter is \(13\,\Omega \) and its scale is graduated for a current upto \(100\,amps.\) After an additional shunt has been connected to this ammeter it becomes possible to measure currents upto 750 amperes by this meter. The value of shunt-resistance is

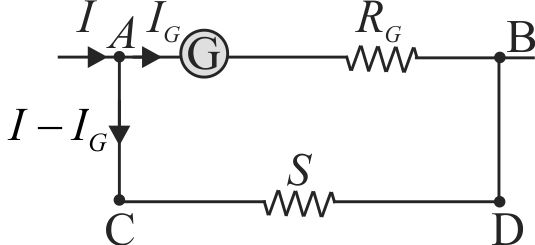

362947 A galvanometer of resistance \(20 \Omega\) is to be converted into an ammeter of range 1\(A\). If a current of 1\(mA\) produces full scale deflection, the shunt required for the purpose is

362948 Full scale deflection current for galvanometer is \(1\,mA\). For making its range upto \(10\,A\). Find the required shunt (Resistance of Galvanometer is \({1000 \Omega}\).

362949 In an ammeter, \(5 \%\) of the main current passes through the galvanometer. If resistance of the galvanometer is \(G\), the resistance of ammeter will be

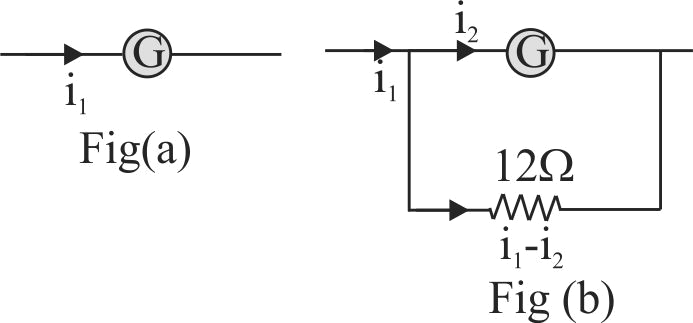

362950 The deflection in a moving coil galvanometer falls from 50 divisions to 10 divisions when a shunt of 12 \(ohm\) is applied. What is the resistance of the galvanometer?
