Surface Tension
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361134 Angle of contact of a liquid with a solid depends on

1 Solid only
2 Liquid only
3 Both solid and liquid only
4 Orientation of the solid surface in liquid
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361135 Read the Statement - A and Statement - B carefully to mark the correct options given below.
Statement A :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in hot water.
Statement B :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in cold water.

1 Statement A is correct but statement B is incorrect
2 Statement A is incorrect but statement B is correct
3 Both statements are correct
4 Both statements are incorrect
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

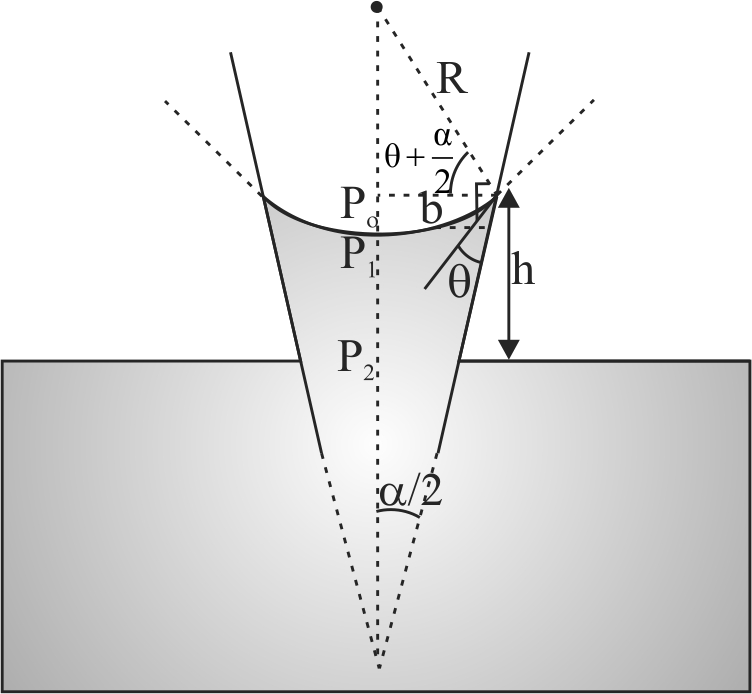

361136 A glass capillary tube is of the shape of truncated cone with an apex angle \(\alpha\) so that its two ends have cross-sections of different radii. When dipped in water vertically, water rises in it to a height \(h\), where the radius of its cross-section is \(b\). If the surface tension of water is \(S\), its density is \(\rho\), and its contact angle with glass is \(\theta\), the value of \(h\) will be ( \(g\) is the acceleration due to gravity)
supporting img

1 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha)\)
2 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha)\)
3 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha / 2)\)
4 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha / 2)\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361137 A capillary tube of \(2\;mm\) diameter. What is the height to which water rises, if surface tension of water is \(7.4 \times {10^{ - 3}}N{m^{ - 1}}\) and angle of contact is \(0^\circ ?\)

1 \(0.25\;mm\)
2 \(1.51\;mm\)
3 \(0.4\;mm\)
4 \(0.5\;mm\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361138 The height of liquid column raised in a capillary tube of certain radius when dipped in liquid \(A\) vertically is, \(5\;cm\). If the tube is dipped in a similar manner in another liquid \(B\) of surface tension and density double the values of liquid \(A\), the height of liquid column raised in liquid \(B\) would be ____ \(m\).

1 0.20
2 0.5
3 0.10
4 0.05
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361134 Angle of contact of a liquid with a solid depends on

1 Solid only
2 Liquid only
3 Both solid and liquid only
4 Orientation of the solid surface in liquid
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361135 Read the Statement - A and Statement - B carefully to mark the correct options given below.
Statement A :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in hot water.
Statement B :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in cold water.

1 Statement A is correct but statement B is incorrect
2 Statement A is incorrect but statement B is correct
3 Both statements are correct
4 Both statements are incorrect
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361136 A glass capillary tube is of the shape of truncated cone with an apex angle \(\alpha\) so that its two ends have cross-sections of different radii. When dipped in water vertically, water rises in it to a height \(h\), where the radius of its cross-section is \(b\). If the surface tension of water is \(S\), its density is \(\rho\), and its contact angle with glass is \(\theta\), the value of \(h\) will be ( \(g\) is the acceleration due to gravity)
supporting img

1 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha)\)
2 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha)\)
3 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha / 2)\)
4 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha / 2)\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361137 A capillary tube of \(2\;mm\) diameter. What is the height to which water rises, if surface tension of water is \(7.4 \times {10^{ - 3}}N{m^{ - 1}}\) and angle of contact is \(0^\circ ?\)

1 \(0.25\;mm\)
2 \(1.51\;mm\)
3 \(0.4\;mm\)
4 \(0.5\;mm\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361138 The height of liquid column raised in a capillary tube of certain radius when dipped in liquid \(A\) vertically is, \(5\;cm\). If the tube is dipped in a similar manner in another liquid \(B\) of surface tension and density double the values of liquid \(A\), the height of liquid column raised in liquid \(B\) would be ____ \(m\).

1 0.20
2 0.5
3 0.10
4 0.05
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361134 Angle of contact of a liquid with a solid depends on

1 Solid only
2 Liquid only
3 Both solid and liquid only
4 Orientation of the solid surface in liquid
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361135 Read the Statement - A and Statement - B carefully to mark the correct options given below.
Statement A :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in hot water.
Statement B :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in cold water.

1 Statement A is correct but statement B is incorrect
2 Statement A is incorrect but statement B is correct
3 Both statements are correct
4 Both statements are incorrect
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361136 A glass capillary tube is of the shape of truncated cone with an apex angle \(\alpha\) so that its two ends have cross-sections of different radii. When dipped in water vertically, water rises in it to a height \(h\), where the radius of its cross-section is \(b\). If the surface tension of water is \(S\), its density is \(\rho\), and its contact angle with glass is \(\theta\), the value of \(h\) will be ( \(g\) is the acceleration due to gravity)
supporting img

1 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha)\)
2 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha)\)
3 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha / 2)\)
4 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha / 2)\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361137 A capillary tube of \(2\;mm\) diameter. What is the height to which water rises, if surface tension of water is \(7.4 \times {10^{ - 3}}N{m^{ - 1}}\) and angle of contact is \(0^\circ ?\)

1 \(0.25\;mm\)
2 \(1.51\;mm\)
3 \(0.4\;mm\)
4 \(0.5\;mm\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361138 The height of liquid column raised in a capillary tube of certain radius when dipped in liquid \(A\) vertically is, \(5\;cm\). If the tube is dipped in a similar manner in another liquid \(B\) of surface tension and density double the values of liquid \(A\), the height of liquid column raised in liquid \(B\) would be ____ \(m\).

1 0.20
2 0.5
3 0.10
4 0.05
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361134 Angle of contact of a liquid with a solid depends on

1 Solid only
2 Liquid only
3 Both solid and liquid only
4 Orientation of the solid surface in liquid
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361135 Read the Statement - A and Statement - B carefully to mark the correct options given below.
Statement A :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in hot water.
Statement B :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in cold water.

1 Statement A is correct but statement B is incorrect
2 Statement A is incorrect but statement B is correct
3 Both statements are correct
4 Both statements are incorrect
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361136 A glass capillary tube is of the shape of truncated cone with an apex angle \(\alpha\) so that its two ends have cross-sections of different radii. When dipped in water vertically, water rises in it to a height \(h\), where the radius of its cross-section is \(b\). If the surface tension of water is \(S\), its density is \(\rho\), and its contact angle with glass is \(\theta\), the value of \(h\) will be ( \(g\) is the acceleration due to gravity)
supporting img

1 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha)\)
2 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha)\)
3 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha / 2)\)
4 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha / 2)\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361137 A capillary tube of \(2\;mm\) diameter. What is the height to which water rises, if surface tension of water is \(7.4 \times {10^{ - 3}}N{m^{ - 1}}\) and angle of contact is \(0^\circ ?\)

1 \(0.25\;mm\)
2 \(1.51\;mm\)
3 \(0.4\;mm\)
4 \(0.5\;mm\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361138 The height of liquid column raised in a capillary tube of certain radius when dipped in liquid \(A\) vertically is, \(5\;cm\). If the tube is dipped in a similar manner in another liquid \(B\) of surface tension and density double the values of liquid \(A\), the height of liquid column raised in liquid \(B\) would be ____ \(m\).

1 0.20
2 0.5
3 0.10
4 0.05
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361134 Angle of contact of a liquid with a solid depends on

1 Solid only
2 Liquid only
3 Both solid and liquid only
4 Orientation of the solid surface in liquid
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361135 Read the Statement - A and Statement - B carefully to mark the correct options given below.
Statement A :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in hot water.
Statement B :
If a capillary tube is immersed first in cold water and then in hot water, the height of capillary rise will be smaller in cold water.

1 Statement A is correct but statement B is incorrect
2 Statement A is incorrect but statement B is correct
3 Both statements are correct
4 Both statements are incorrect
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361136 A glass capillary tube is of the shape of truncated cone with an apex angle \(\alpha\) so that its two ends have cross-sections of different radii. When dipped in water vertically, water rises in it to a height \(h\), where the radius of its cross-section is \(b\). If the surface tension of water is \(S\), its density is \(\rho\), and its contact angle with glass is \(\theta\), the value of \(h\) will be ( \(g\) is the acceleration due to gravity)
supporting img

1 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha)\)
2 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha)\)
3 \(\dfrac{2 S}{b \rho g} \cos (\theta-\alpha / 2)\)
4 \(\dfrac{2 S}{b \rho g} \cos (\theta+\alpha / 2)\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361137 A capillary tube of \(2\;mm\) diameter. What is the height to which water rises, if surface tension of water is \(7.4 \times {10^{ - 3}}N{m^{ - 1}}\) and angle of contact is \(0^\circ ?\)

1 \(0.25\;mm\)
2 \(1.51\;mm\)
3 \(0.4\;mm\)
4 \(0.5\;mm\)
PHXI10:MECHANICAL PROPERTIES OF FLUIDS

361138 The height of liquid column raised in a capillary tube of certain radius when dipped in liquid \(A\) vertically is, \(5\;cm\). If the tube is dipped in a similar manner in another liquid \(B\) of surface tension and density double the values of liquid \(A\), the height of liquid column raised in liquid \(B\) would be ____ \(m\).

1 0.20
2 0.5
3 0.10
4 0.05
