The Concept of Potential Energy
« Previous Topic: Scalar Product of Vectors Next Topic: The Work-Energy Theorem for a Constant/Variable Force »
PHXI06:WORK ENERGY AND POWER

355623 A spring is kept compressed by a small cart of mass 150 \(g\). On releasing the cart, it moves with a speed of \(0.2\,m{s^{ - 1}}\). The potential energy of the spring is

1 \(6 \times 10^{-3} \mathrm{~J}\)
2 \(1 \times 10^{-4} J\)
3 \(4 \times 10^{-4} \mathrm{~J}\)
4 \(3 \times 10^{-3} \mathrm{~J}\)
PHXI06:WORK ENERGY AND POWER

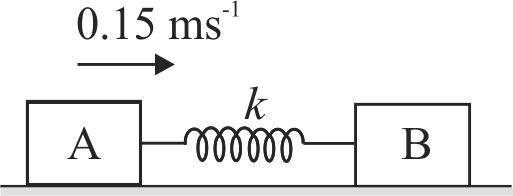

355624 The rectangular blocks \(A\) and \(B\) of masses 2 \(kg\) and 2 \(kg\) respectively are connected by a spring of spring constant \(10.8\;N\;{m^{ - 1}}\) and are placed on a frictionless horizontal surface. The block \(A\) was given an initial velocity of \(0.15\;m\;{s^{ - 1}}\) in the direction shown in the figure. The maximum compression of the spring during the motion is
supporting img

1 0.01 \(m\)
2 0.02 \(m\)
3 0.05 \(m\)
4 0.03 \(m\)
KCET - 2009
NEET DIGITAL LIBRARY
PHXI06:WORK ENERGY AND POWER

355623 A spring is kept compressed by a small cart of mass 150 \(g\). On releasing the cart, it moves with a speed of \(0.2\,m{s^{ - 1}}\). The potential energy of the spring is

1 \(6 \times 10^{-3} \mathrm{~J}\)
2 \(1 \times 10^{-4} J\)
3 \(4 \times 10^{-4} \mathrm{~J}\)
4 \(3 \times 10^{-3} \mathrm{~J}\)
PHXI06:WORK ENERGY AND POWER

355624 The rectangular blocks \(A\) and \(B\) of masses 2 \(kg\) and 2 \(kg\) respectively are connected by a spring of spring constant \(10.8\;N\;{m^{ - 1}}\) and are placed on a frictionless horizontal surface. The block \(A\) was given an initial velocity of \(0.15\;m\;{s^{ - 1}}\) in the direction shown in the figure. The maximum compression of the spring during the motion is
supporting img

1 0.01 \(m\)
2 0.02 \(m\)
3 0.05 \(m\)
4 0.03 \(m\)
KCET - 2009
