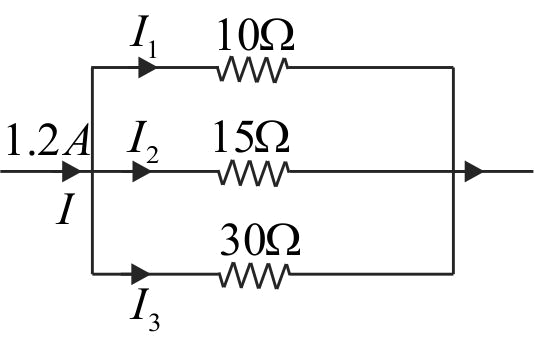

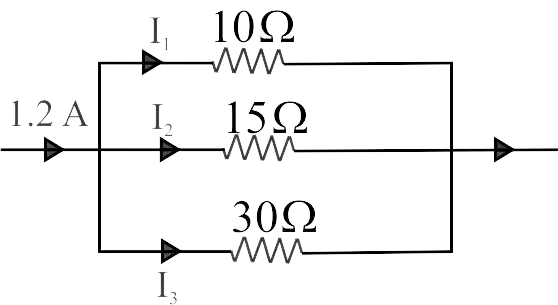

357439 In this circuit, the value of \({I_2}\) is
supporting img

1 \(0.2\,A\)
2 \(0.3\,A\)
3 \(0.4\,A\)
4 \(0.6\,A\)
KCET - 2012
PHXII03:CURRENT ELECTRICITY

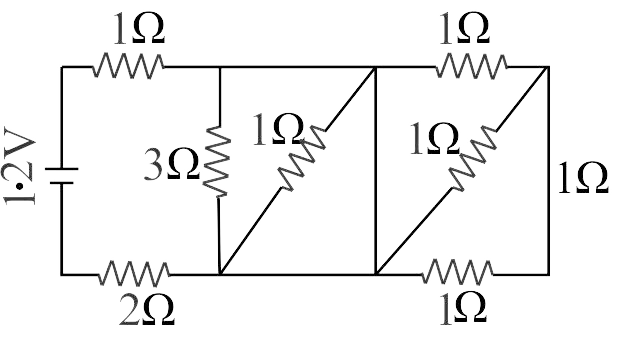

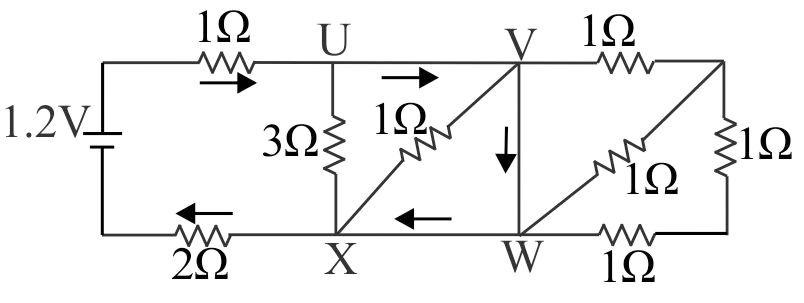

357440 In the given circuit, the current through \(2\Omega \) resistor is
supporting img

1 \(0.4\,A\)
2 \(0.2\,A\)
3 \(0.1\,A\)
4 \(0.3\,A\)
KCET - 2019
PHXII03:CURRENT ELECTRICITY

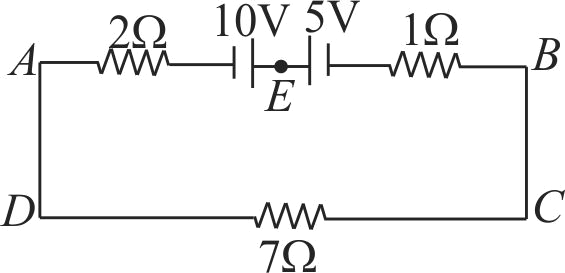

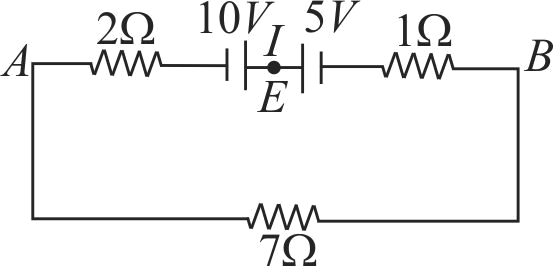

357441 The magnitude and direction of the current in the following circuit is:
supporting img

1 \(0.5{\mkern 1mu} A\,{\rm{from}}\,A\,{\rm{to}}\,B\,{\rm{through}}\,E\)
2 \(\frac{5}{9}{\mkern 1mu} A\,{\rm{from}}\,A\,{\rm{to}}\,B\,{\rm{through}}\,E\)
3 \(1.5{\mkern 1mu} A\,{\rm{from}}\,B\,\,{\rm{to}}\,A\,{\rm{through}}\,E\)
4 \(0.2{\mkern 1mu} A\,{\rm{from}}\,B\,\,{\rm{to}}\,A\,{\rm{through}}\,E\)
NEET - 2023
PHXII03:CURRENT ELECTRICITY

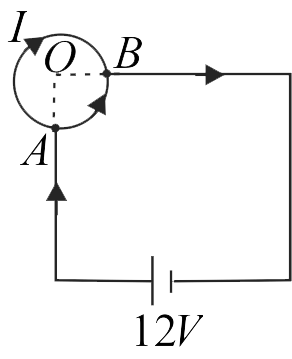

357442 A wire is bent in the form of circle of radius \(4\;m\). Resistance per unit length of wire is \(\left( {\frac{1}{{2\pi }}} \right)\Omega /m\). Battery of \(12\;V\) is connected between \(A\) and \(B.\) \(\angle AOB = 90^\circ .\)
Find the current through the battery.
supporting img

1 \(12\,A\)
2 \(16\,A\)
3 \(8\,A\)
4 \(20\,A\)
NEET DIGITAL LIBRARY
PHXII03:CURRENT ELECTRICITY

357439 In this circuit, the value of \({I_2}\) is
supporting img

1 \(0.2\,A\)
2 \(0.3\,A\)
3 \(0.4\,A\)
4 \(0.6\,A\)
KCET - 2012
PHXII03:CURRENT ELECTRICITY

357440 In the given circuit, the current through \(2\Omega \) resistor is
supporting img

1 \(0.4\,A\)
2 \(0.2\,A\)
3 \(0.1\,A\)
4 \(0.3\,A\)
KCET - 2019
PHXII03:CURRENT ELECTRICITY

357441 The magnitude and direction of the current in the following circuit is:
supporting img

1 \(0.5{\mkern 1mu} A\,{\rm{from}}\,A\,{\rm{to}}\,B\,{\rm{through}}\,E\)
2 \(\frac{5}{9}{\mkern 1mu} A\,{\rm{from}}\,A\,{\rm{to}}\,B\,{\rm{through}}\,E\)
3 \(1.5{\mkern 1mu} A\,{\rm{from}}\,B\,\,{\rm{to}}\,A\,{\rm{through}}\,E\)
4 \(0.2{\mkern 1mu} A\,{\rm{from}}\,B\,\,{\rm{to}}\,A\,{\rm{through}}\,E\)
NEET - 2023
PHXII03:CURRENT ELECTRICITY

357442 A wire is bent in the form of circle of radius \(4\;m\). Resistance per unit length of wire is \(\left( {\frac{1}{{2\pi }}} \right)\Omega /m\). Battery of \(12\;V\) is connected between \(A\) and \(B.\) \(\angle AOB = 90^\circ .\)
Find the current through the battery.
supporting img

1 \(12\,A\)
2 \(16\,A\)
3 \(8\,A\)
4 \(20\,A\)
