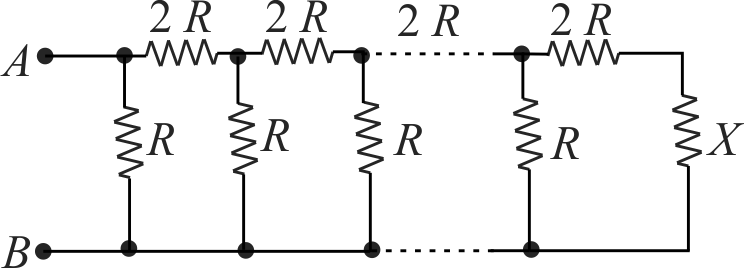

At what value of the resistance in the circuit shown in the figure will the total resistance between points \({A}\) and \({B}\) be independent of the number of cells? If \({R=(\sqrt{3}+1) \Omega}\), then the value of \({x}\) will be
356998

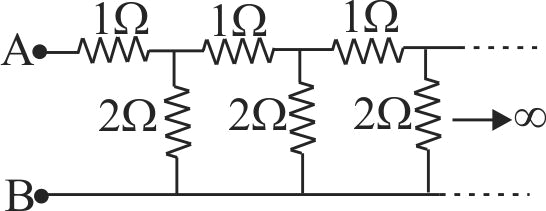

An infinite ladder network is constructed with \(1\Omega \) and \(2\Omega \) resistors as shown. Find the equivalent resistance between points \(A\) and \(B\).
1 \(1\Omega \)
2 \(2\Omega \)
3 \(3\Omega \)
4 \(0.5\Omega \)
Explanation:

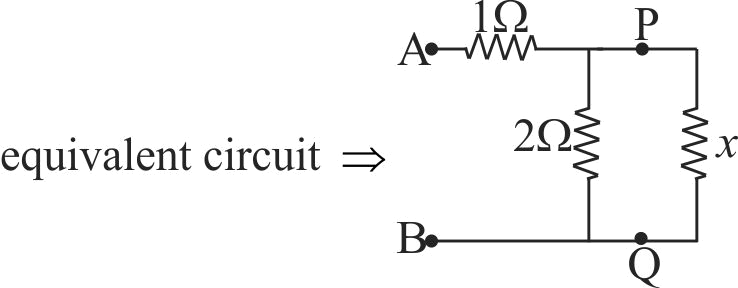

Let the equivalent resistance between \(A\) & \(B\) be \(x\). The equivalent resistance across \(PQ\) is also \(x\) \({R_{AB}} = \left( {\frac{{2x}}{{2 + x}}} \right) + 1\) \(x = \frac{{2x + 2 + x}}{{2 + x}}\) \(\left( {As\;\quad {R_{AB}} = {\rm{x}}} \right)\) \(2x + {x^2} = 3x + 2\) \({x^2} - x - 2 = 0\quad \Rightarrow x = 2\Omega \)
PHXII03:CURRENT ELECTRICITY
356999

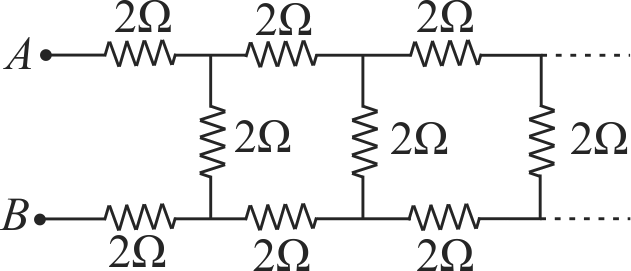

The equivalent resistance between the points \(A\) and \(B\) in the following circuit is
