356118 In the circuit shown in the figure the rms currents \(I_{1}, I_{2}\), and \(I_{3}\) are altered by varying the frequency fof the oscillator.
The output voltage of the oscillator remains sinusoidal and has a fixed amplitude.
Which curves in figure correctly indicate the variation with frequency of the currents \(I_{1}, I_{2}\), and \(I_{3}\) ?

356119 An \(LC\) circuit contains a 20 \(mH\) inductor and a \(50\mu F\) capacitor with an initial charge of 10 \(mC\). The resistance of the circuit is negligible. At the instant the circuit is closed be \(t = 0\). At what time is the energy stored completely magnetic?

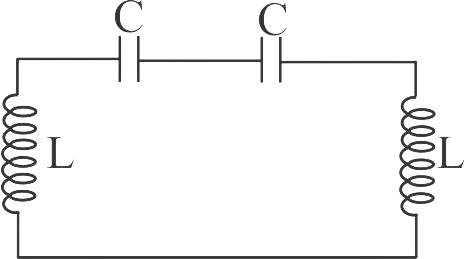

356120 The natural frequency of the circuit shown in the figure

356121 For high frequency \(L-C\) circuit, the maximum charge on the capacitor is \(Q\). The charge on the capacitor, when the energy is stored equally between the electric and magnetic fields is
