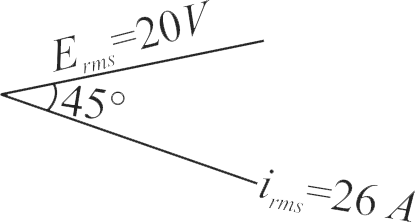

356036 The vector diagram of current and voltage for a circuit is given. The components of the circuit will be

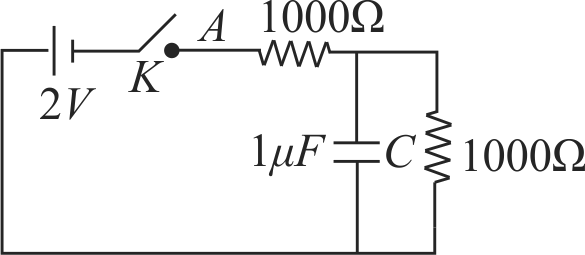

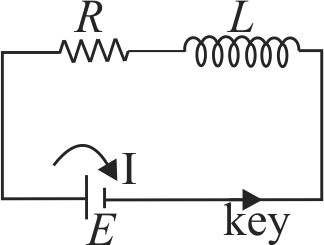

356037 When the \(K\) is pressed at \(t=0\) which of the following statements about the current \(I\) in the resistor \(A B\) of the given circuit is true?

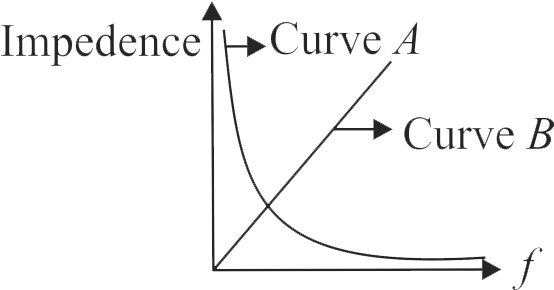

356038 As per the given graph, choose the correct representation for curve \(A\) and curve \(B\). Where \(X_{C}=\) reactance of pure capacitive circuit connected with \(A.C.\) source
\(X_{L}=\) reactance of pure inductive circuit connected with \(A.C.\) source
\(R=\) impedance of pure resistive circuit connected with \(A.C.\) source
\(Z=\) Impedance of the \(L C R\) series circuit

356039 Assertion :
The quantity \(L / R\) possesses dimensions of time.
Reason :
To reduce the rate of increases of current through a solenoid, can be increased the time constant \((L / R)\).
