Electrostatic Potentials and Capacitance

268049 Three identical condensersare connected together in four different ways. First all of them are connected in series and the equivalent capacity is \(\mathrm{C}_{1}\). Next all of them are connected in parallel and the equivalent capacity is \(\mathrm{C}_{2^{2}}\). Next two of them are connected in series and the third one connected in parallel to the combination and the equivalent capacity is \(\mathrm{C}_{3}\). Next two of them are connected in parallel and the third
one connected in series with the combination and the equivalent capacity is \(\mathrm{C}_{4}\). Which of the following is correct ascending order of the equivalent capacities?

1 \(C_{1}\lt C_{3}\lt C_{4}\lt C_{2}\)
2 \(C_{1}\lt C_{4}\lt C_{3}\lt C_{2}\)
3 \(C_{2}\lt C_{3}\lt C_{4}\lt C_{1}\)
4 \(C_{2}\lt C_{4}\lt C_{3}\lt C_{1}\)
Electrostatic Potentials and Capacitance

268038 Figure shows two capacitors connected in series and joined to a cell. The graph shows the variation in potential as one moves from left to right on the branch containing capacitors.

1 \(C_{1}>C_{2}\)
2 \(C_{1}=C_{2}\)
3 \(C_{1}\lt C_{2}\)
4 data insufficient to conclude the answer
Electrostatic Potentials and Capacitance

268050 On a capacitor of capacitance\(C_{0}\) following steps are performed in the order as given in column I.
(A) Capacitor is charged by connecting it across a battery of emf \(E_{0}\)
(B) Dielectric of dielectric constant \(K\) and thickness d is inserted
(C) C apacitor is disconnected from battery
(D) Separation between plates is doubled

|Column-I (Steps performed) |Column-II (Final value of Q uantity (Symbols have usual meaning) (Steps performed)|
|-----|------|
|(a) \((A)(D)(C)(B)\)|(p) \(Q=\frac{C_{0} E_{0}}{2}\)|
|(b) (D)(A)(C)(B)|(q) \(Q=\frac{K C_{0} E_{0}}{K+1}\)|
|(c) \((B)(A)(C)(D)\)|(r) \(C=\frac{K C_{0}}{K+1}\)|
|(d) \((A)(B)(D)(C)\)|(s) \(V=\frac{E_{0}(K+1)}{2 K}\)|

1 \(a-p, r, s, b-p, r, s, c-r, d-q, r\)
2 \(a-p, b-p,r c-r, d-q,\)
3 \(a-p,s, b-r,s, c-r, d-q,\)
4 \(a-r, s, b-s, c-r, d-q, r\)
Electrostatic Potentials and Capacitance

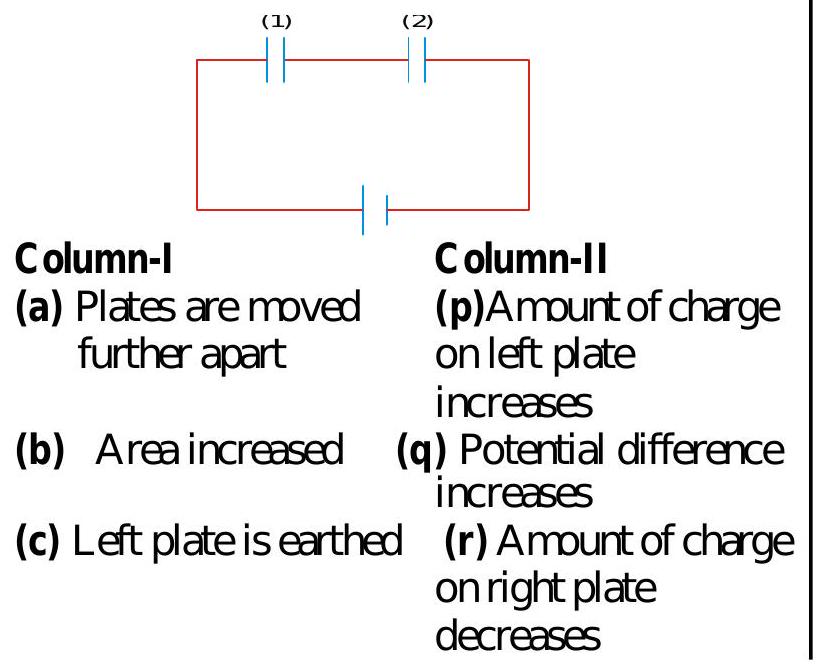

268051 In the circuit, both capacitors areindentical. C olumn I indicates action done on capacitors 1 and Column II indicates effect on capacitor 2

1 \(ar, b-p,q, c-s, d-p,q\)
2 \(arr, b-p, c-s, d-q\)
3 \(a-r, b-p, c-r, d-q\)
4 \(a-s, b-q, c-s, d-q\)
Electrostatic Potentials and Capacitance

268052 The potential across a\(3 \mu \mathrm{F}\) capacitor is \(12 \mathrm{~V}\) when it is not connected to anything. It is then connected in parallel with an uncharged \(6 \mu \mathrm{F}\) capacitor. At equilibrium, the charge and potential difference across the capacitor 3 \(\mu \mathrm{F}\) and \(6 \mu \mathrm{F}\) arelisted in column I. M atch it with column III.
|Column-I|Column-II|
|------|------|
|(a) charge on \(3 \mu \mathrm{F}\) capacitor|(p) \(12 \mu \mathrm{C}\)|
|(b) charge on \(6 \mu \mathrm{F}\) capacitor|(q) \(24 \mu \mathrm{F}\)|
|(c) potential difference across \(3 \mu \mathrm{F}\) |(r) \(8 \mathrm{~V}\) capacitor|
|(d) potential difference across \(6 \mu \mathrm{F}\) |(s) \(4 \mathrm{~V}\) capacitor|

1 ar, b-p, c-s, d-q
2 a-p, b-q, c-s, d-s
3 ar, b-p, c-q, d-q
4 arr, b-q, c-s, d-q
